Introduction

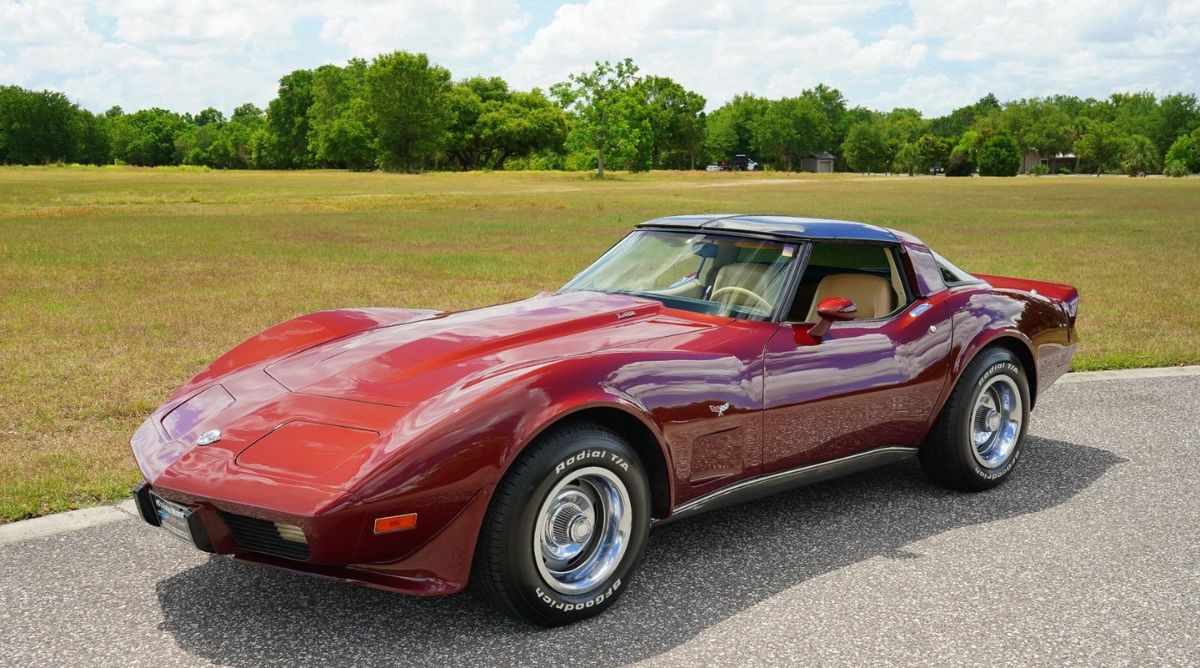

The 1978 Chevrolet Corvette, a third-generation (C3) icon, is admired for its classic curves and performance. However, as with any vintage car, maintenance becomes essential with age—especially when it comes to the transmission system. One common issue owners encounter is a leaking transmission seal. Left unchecked, it can cause fluid loss, poor shifting, and even internal damage.
In this article, we will walk through how to replace transmission seal on a 1978 Corvette in a detailed, step-by-step guide. You’ll learn how to identify the leaking seal, gather the right tools, and perform the replacement, whether it’s the input shaft seal, output shaft seal, or transmission pan gasket.
Understanding the Transmission Seals
The transmission system of a 1978 Corvette typically includes multiple seals, each designed to prevent transmission fluid from leaking. The three main seals are:
1. Front Input Shaft Seal (Torque Converter Seal)
Located at the front of the transmission, this seal prevents fluid from leaking into the bell housing.
2. Rear Output Shaft Seal
This seal is located at the rear where the driveshaft connects and prevents fluid from leaking where the yoke enters the transmission.
3. Transmission Pan Gasket
This isn’t technically a seal, but it’s a critical gasket that seals the pan and holds transmission fluid.
Depending on where the leak is coming from, your approach may differ slightly.
Tools and Materials Needed
Before starting, gather the following tools and materials:
- Floor jack and jack stands
- Wheel chocks
- Transmission jack (optional but recommended)
- Socket and wrench set
- Flathead screwdriver
- Torque wrench
- Seal puller or pry tool
- Rubber mallet
- Replacement seals (front input, rear output, or pan gasket)
- Transmission fluid (Dexron III recommended for the 1978 Corvette)
- Transmission filter kit (if changing pan gasket)
- Gasket scraper
- Brake cleaner
- Drain pan
- Safety glasses and gloves
Step 1: Diagnose the Leak
Before replacing the seal, confirm which seal is leaking. Here’s how:
Signs of a Front Input Shaft Seal Leak:
- Fluid dripping from the bell housing
- Transmission slipping
- Low fluid level with no visible pan leaks
Signs of a Rear Output Shaft Seal Leak:
- Fluid dripping from the driveshaft/yoke area
- Fluid on the underbody or exhaust pipe
- Vibration during acceleration (if fluid gets on driveshaft bushing)
Signs of a Transmission Pan Gasket Leak:
- Fluid around the bottom pan edges
- Visible wetness or dripping when parked
Use a flashlight and clean the transmission to better trace leaks.
Step 2: Prepare the Vehicle
1. Park Safely
- Park the Corvette on a level surface.
- Engage the parking brake.
- Use wheel chocks to secure the front tires.
2. Lift the Vehicle
- Use a floor jack to raise the rear end.
- Place jack stands under the rear frame rails or designated lift points.
- Ensure the car is stable before crawling underneath.
Step 3: Drain the Transmission Fluid
Regardless of which seal you’re replacing, draining the fluid helps reduce mess.
1. Place a Drain Pan
- Put the drain pan under the transmission.
2. Loosen Pan Bolts
- Begin loosening bolts with a socket. Leave one corner bolt in place to allow controlled drainage.
3. Remove the Pan
- Once drained, remove the last bolt and lower the pan carefully.
- Clean the pan and magnet inside.
Step 4: Replacing the Rear Output Shaft Seal
This is the most commonly leaking seal in older Corvettes.
1. Remove Driveshaft
- Use a wrench to remove U-joint straps from the differential yoke.
- Slide the driveshaft rearward and pull it from the transmission tailshaft.
2. Remove Old Seal
- Use a seal puller or flathead screwdriver to carefully pry out the old seal from the transmission tail housing.
3. Clean the Surface
- Clean the sealing surface using brake cleaner and a lint-free cloth.
4. Install New Seal
- Lightly lubricate the new seal with transmission fluid.
- Tap it evenly into place using a seal driver or a large socket and rubber mallet.
5. Reinstall Driveshaft
- Slide the yoke back into the transmission.
- Reattach U-joint straps on the differential.
Step 5: Replacing the Front Input Shaft Seal
More labor-intensive, as it requires transmission removal.
1. Disconnect Transmission Linkages
- Detach shifter linkage, vacuum lines, and wiring from the transmission.
2. Support the Transmission
- Use a transmission jack or a floor jack with a wood block under the pan.
3. Remove Driveshaft and Transmission Mount
- Remove the driveshaft as before.
- Remove the crossmember and transmission mount bolts.
4. Unbolt Bell Housing
- Unbolt the transmission from the engine bell housing (usually 6 bolts).
5. Pull the Transmission Back
- Carefully slide it back just enough to access the front seal.
6. Remove Torque Converter Seal
- Pry out the front input seal from the pump housing.
7. Install New Seal
- Lubricate the new seal and tap it into place.
8. Reassemble Everything
- Reinstall transmission, crossmember, and driveshaft.
- Reconnect all linkages and wiring.
Step 6: Replacing Transmission Pan Gasket
1. Remove Old Gasket
- Use a gasket scraper to remove the old gasket material from the pan and transmission.
2. Install New Filter (Optional)
- If doing a service, replace the filter and O-ring.
3. Install New Gasket
- Place the new gasket onto the pan (cork or rubber preferred for vintage models).
4. Reinstall the Pan
- Hand-tighten bolts in a criss-cross pattern.
- Torque to spec: Usually around 12–15 ft-lbs for GM TH350 or TH400 pans.
Step 7: Refill Transmission Fluid
1. Lower the Car
- Safely remove jack stands and lower the vehicle.
2. Add Fluid
- Use a funnel to add Dexron III automatic transmission fluid through the dipstick tube.
3. Start the Engine
- With the engine running and transmission in PARK, check fluid level.
- Add fluid until it reaches the “Full” mark.
4. Check for Leaks
- Let the engine run for 5–10 minutes.
- Inspect all replaced seals and pan for any signs of leakage.
Pro Tips and Additional Advice
- OEM vs. Aftermarket Seals: Stick to OEM-quality seals for the best fit and longevity.
- Overfilling: Avoid overfilling as it can cause frothing and erratic shifting.
- Transmission Cooler Lines: Check for leaks where they connect to the radiator.
- Mileage Consideration: If your Corvette has over 100,000 miles and multiple seals leak, a full rebuild may be more cost-effective long-term.
- Service Intervals: Change transmission fluid every 30,000 miles to prevent seal hardening and leaks.
Frequently Asked Questions (FAQs)
❓ How long does it take to replace a transmission seal on a 1978 Corvette?
- Rear output shaft seal: 1–2 hours
- Front input seal: 4–6 hours
- Pan gasket: 1 hour
❓ What transmission does a 1978 Corvette have?
- Most 1978 Corvettes came with either a Turbo Hydra-Matic 350 or Turbo 400 automatic transmission. Some had a manual M21 or M22.
❓ Can I drive with a leaking transmission seal?
- Short answer: No. Leaking seals lead to fluid loss, which causes overheating and damage.
Conclusion
Knowing how to replace transmission seal on a 1978 Corvette empowers classic car enthusiasts to extend the life of their prized vehicle. Whether you’re addressing a minor pan gasket leak or tackling a more involved front seal replacement, each step contributes to preserving the performance and reliability of your Corvette.
Routine maintenance, timely fluid checks, and seal inspections are essential to keeping this American classic running strong for decades to come.
